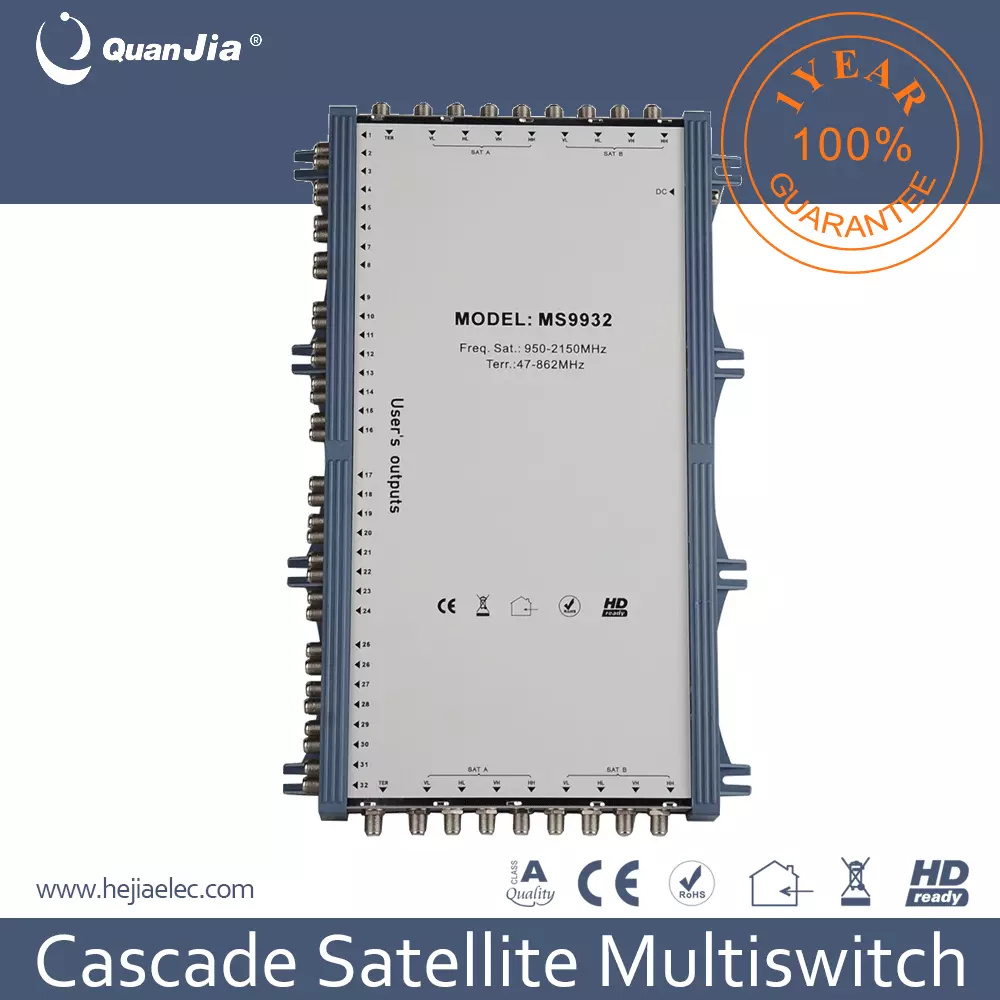

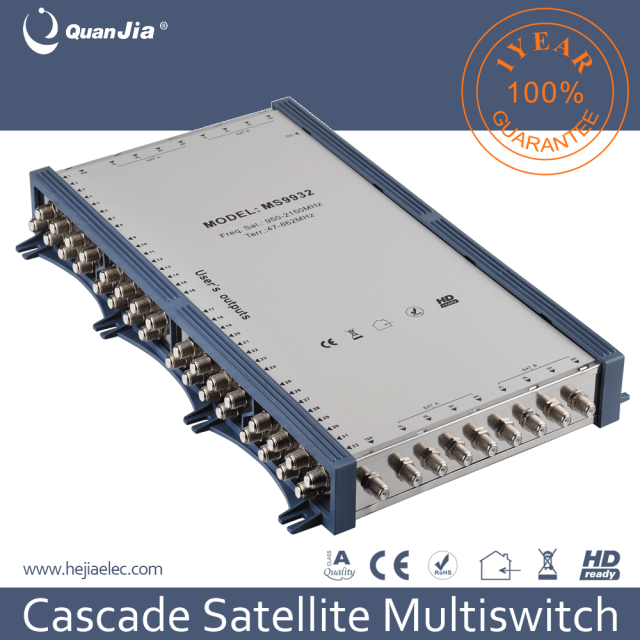

9x9x32 Cascadable Satellite Multiswitch for SMATV System(SH9932E)

Featrues:

1) 8 satellite IF and 1 terrestrial TV inputs for 32 satellite receiver

2) 8 satellite IF inputs selected by 13V,18V,22KHz and DisEqC 2.0 signal

3) Low insertion loss, high isolation

4) SAT-IF-PATHs to the subscribers are active and supplied by the receiver

5) Sheet metal housing with plastic holder

6) Design good for indoor usage

7) External adapter available

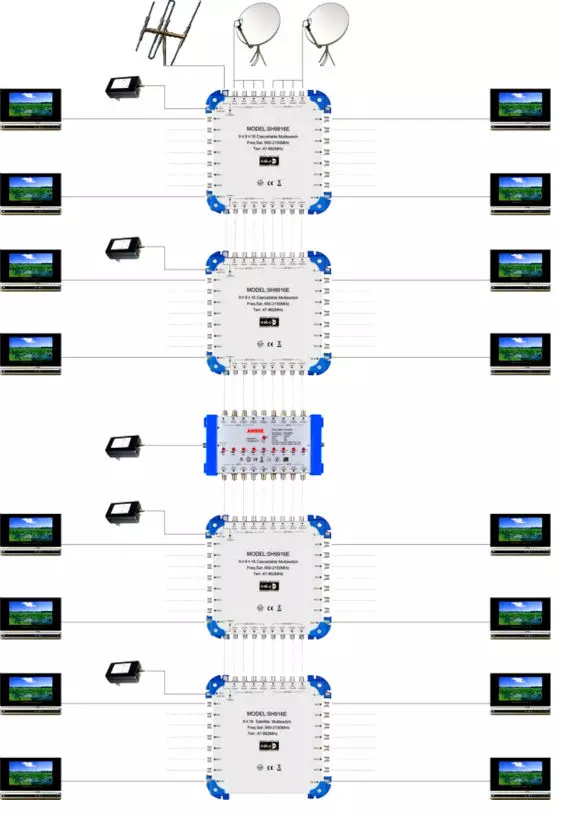

8) Cascade type

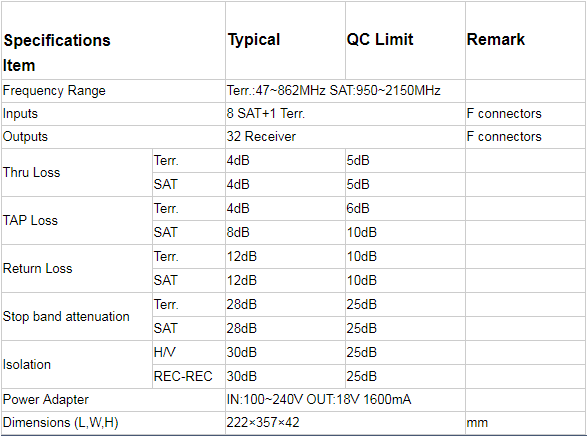

Specifications
